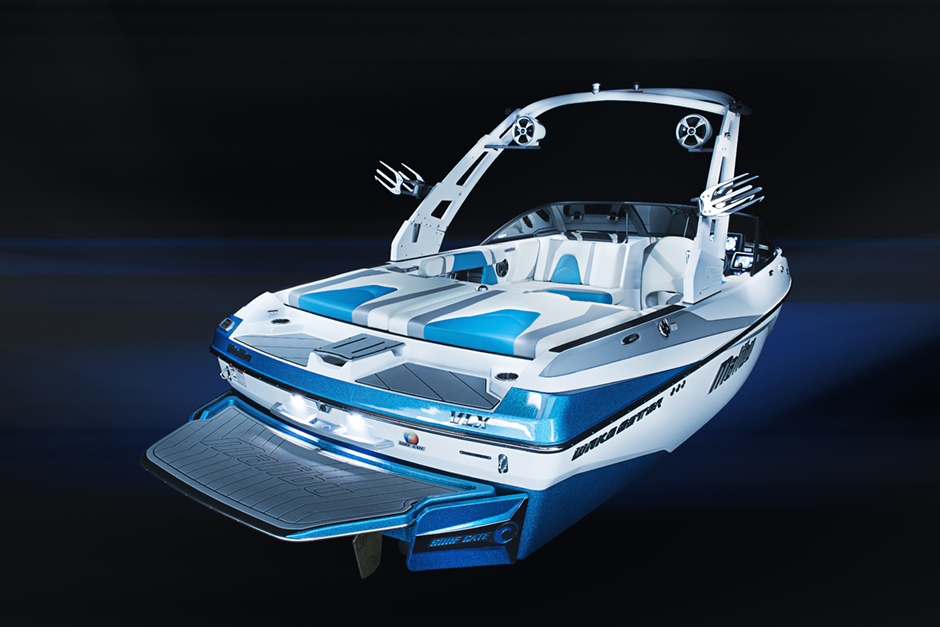

MALIBU 21 VLX | ULTIMATE MALIBU VALUE
If you're considering your first Malibu or didn't know how accessible a new Wakesetter could be, meet the new 21 VLX. We designed it as an affordable, complete family watersports package with seating for upto 13. The 21 VLX is a no-compromise machine fully equipped for water-skiing, wakeboarding, surfing or just a day of fun on the water. You get the complete Integrated Surf Platform, including the Power Wedge II hydrofoil and the Surf Gate. We even include a bimini top and a cover in the purchase price. Competitors can't match its performance, its Malibu fit and finish or its value.

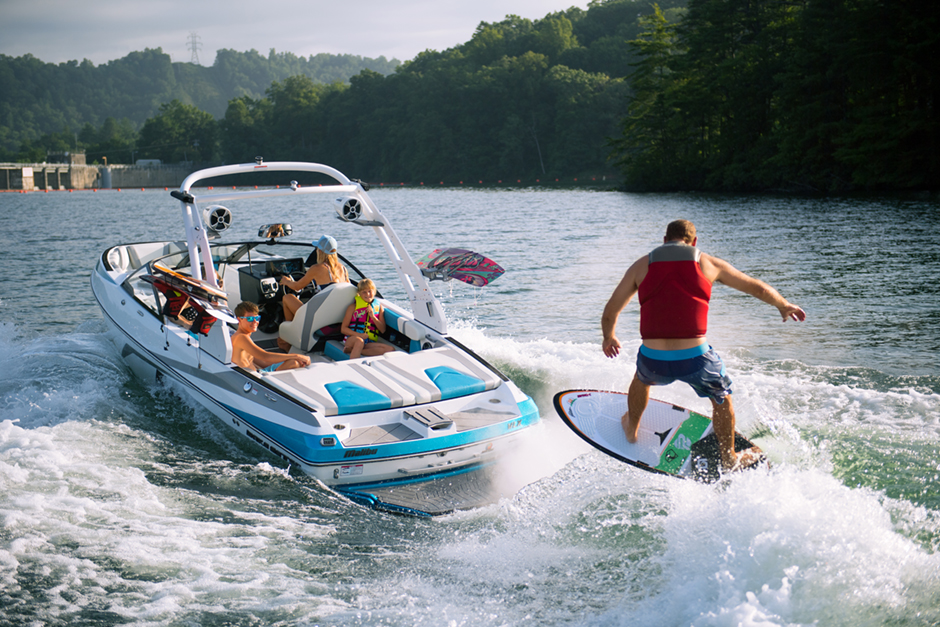

Malibu’s Integrated Surf Platform combines an array of our innovations to create the perfect wake and wave suitable whether you are a beginner, a Professional, or anywhere in between. The ISP starts with performance hulls and swim boards tailored to each boat model. From there it builds in several industry-firsts, including the unique and patented Surf Gate that transforms a perfect watersports wake into a surfable and customized wave.
The ISP’s Quad Hard-Tank Ballast system lets you add up to 2,270 kgs of wake-creating ballast (depending on the model) at the tap of your finger on one of the dual touch-screens forming our Command Center.
Also at your command, Malibu’s Power Wedge II, our second-generation patented hydrofoil, adds up to 680 kgs of additional wake-generating water displacement.
For the last word in wake and wave control, the Malibu ISP puts it right in the surfer’s hands with the patented Surf Band wrist remote. Easily transfer with the use of Surf Band, as well as audio and visual signaling.
| Length (excl. Platform) | 21' / 6.40 m |
| Length (incl. Swim Platform) | 23'9" / 7.26 m |
| Beam | 98" / 2.50 m |
| Weight | 4,000 lbs / 1,814 kgs |
| Draft | 27" / 0.69 m |
| Standard Ballast | 750 lbs / 340 kgs |
| Maximum Ballast | 3,700 lbs / 1,678 kgs |
| Optional Bow Ballast | 340 lbs / 154 kgs |
| Optional Plug'n'Play | 1,100 lbs / 499 kgs |
| Optional Power Wedge II | 1,500 lbs / 680 kgs |
| Hull Type | Wake Plus or Diamond |
| Fuel Capacity | 182 ltrs |
| Maximum People | 13 |
| Disclaimer |
|
- Monsoon 410 6.2L

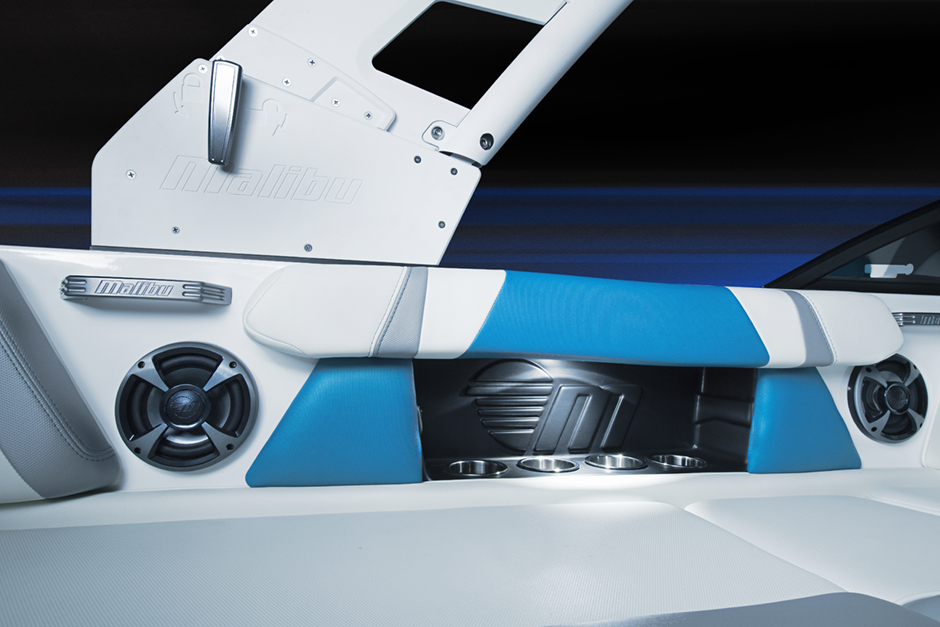

- Wet Sounds 6 Speaker System
- 12" Subwoofer With Amp
- NEW G3.5 Tower w/Bimini
- Board Racks
- Surf Gate with Surf band
- Power Wedge II
- Rear view Mirror 14”
- Snap-Out Carpet Insert
- Sport Dash with rotary 4-way joystick
- 12” Touch Screen Command Center
- Zero Off GPS
- Pull Up Cleats
- Trailer Included
- Standard Full Factory 5 Year Warranty
Propellors
Standard 15 x 14 - 948 (w/410)
Standard 15 x 1575 - 2277 (w/450)
High Altitude/Torque 15 x 13 - 945 (w/410)
High Altitude/Torque 15 x 1425 - 2249 (w/450)
Speed 1475 x 1575 - 912 (w/410)
Speed 15 x 1775 - 2401 (w/450)
Engine Accessories
Flush Kit - Transom Install (Added when Saltwater Selected)
Canvas Covers
CS Bimini Top - Gen II Surf (only w/3.5)
CS Bimini Top & Boot - w/Rope Storage (2 Pockets) (only w/3.5)
CS Boat Cover - w/Black Zip Cleat and Fuel Fill Pockets
GL Boat Cover - w/Pleated Pockets w/Hang-Tyte
Shrink Wrap Shipping Cover

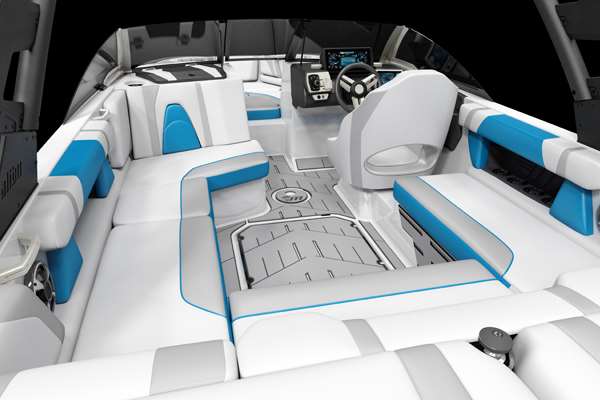

Cockpit Options
Cockpit Flooring - Snap-out Carpet Insert
Cockpit Flooring - Soft-Grip Flooring
SOFT GRIP FLOORING
Our Soft Grip Flooring adds comfort, grip, durability and an ultra-premium look and feel to your Malibu's interior and swimdeck.
Mirror with Windscreen Mount
Seat Base Covering - Soft-Grip (Only w/ Soft Grip Flooring)
Speed Control - Zero Off GPS
Sport Dash w/Rotary VDC 4-Way Joystick
SPORT DASH WITH ROTARY CONTROL & PHONE HOLDER
The analog control dial for the Surf Gate, Power Wedge II, speed and stereo is a great convenience, allowing the driver to control all of this technology with one hand-and without taking their eyes off the water.
Graphics
Wakesetter Hull Graphics
Hardware
Battery - 500 CCA (Taylor Deep Cycle)
Battery - 800 CCA (Taylor Deep Cycle)
Dual Batteries - 500 CCA & 800 CCA
Battery Set Up - Option 2 (required for Sound Package. Includes a battery isolator switch with a second box and cables.)
Pull Up Cleats - Two Pair
Fire Suppression System (CE Certified)
Grounded Bonded Sacrificial Anodes (Added when Saltwater Selected)
Hydraulic Steering (automatically added when SWS selected)
Stereo Components
Stereo Sound System with 6 inch Speakers
Subwoofer - 12 inch Subwoofer (w/amp)
Tower
Side Pull Surfing Tow Point - Port & Stbd
NEW G3.5 Tower

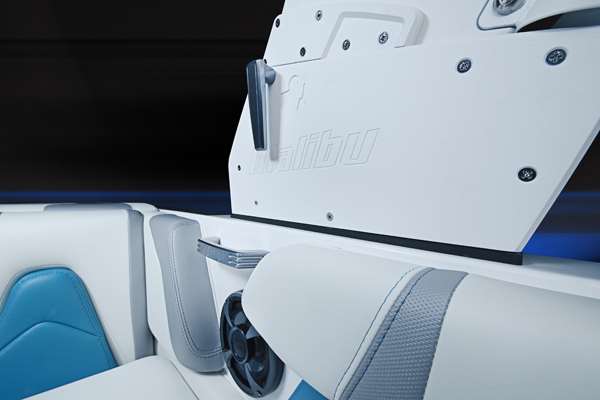

New for 2017, the G3.5 tower offers outstanding value without sacrificing renowned Malibu quality. It's got all you need for fun and safety on the water, including a new easy latching solution, powerful lights, stainless-steel hoops and anodized and powder-coated components. The G3.5 introduces a new latch design, new LED tower and anchor lights and optional side pull points for surfing.
On both towers, you'll find Malibu's renowned attention to detail in every part. Our aerospace-grade anodised aluminium swivel board racks are corrosion-resistant and ratchet down with the slightest tug on a single lever, securing any board. Wakeboarding Magazine called these "the best board racks ever."
To give the rider a dynamite soundtrack, option the G3.5 with the swivel-mounted, high fidelity G-Force Wet Sounds speakers.
Delete Std Tower
Tower Amp - 500w (required w/2nd set of speakers)
Tower Hoop Gunmetal Stainless (Only w/3.5)
Tower Hoop and Arch Color Selection (Only w/3.5)
Rack - Slide Off Spinner Combo (PL)
Rack - Waterski Rack - Slide Off (PL)
Rack - Slide Off Spinner Combo (SL)
Rack - Waterski Rack - Slide Off (SL)
Speakers - Wet Sounds Icon 8 (1 set) - Black
Wake Technology
Ballast HI FLO - Midship Malibu Launch System
Ballast HI FLO - Rear Malibu Launch System
Ballast HI FLO - Rear PNP Plumbing
Ballast HI FLO - Bow Malibu Launch System
TRUE WAKE AND WAVE CREATION | Deploying the hydraulically actuated Power Wedge II is like adding up to 1,500 lbs (680 kgs) of additinal wake-creating water displacement. It happens at the tap of the driver's finger on the Command Center, or the surfer wearing the optional Malibu Surf Band wrist remote can adjust it right from the water.
Compared to our original Power Wedge, the Power Wedge II creates a more symmetrical wake that's also taller, longer and cleaner. The hydrofoil's upward angle increases lift to get the boat planing very quickly, which also helps reduce fuel consumption. Malibu's Power Wedge II is the only wake shaping device in the industry that gives you full versatility and infinite wake-and-wave-making abilities.
Surf Gate w/Malibu Surfband (Must also order P/Wedge)
Misc Options
Life Without Limits Album
CE Package - International only
Trailer
Tandem Axle Trailer
Two-Tone - Please Select Accent Color
Two-Tone - Fender Only - Please Select Accent Color
Actuator
Bow Step
Elite Shield Coating - Fender only
Elite Shield Coating - Trailer and Fender
Elite Shield Coating - Trailer and Fender
Painted Fenders
Stainless Fenders
Fender Tread Plates
Frame Color - Please Choose Trailer Frame Color
Galvanised - Axles only - Twin Axel
Galvanised - Frame and Axle
Galvanised - Frame/Axle/Fender
Brakes - Electric Hydraulic
Lighting - Runway
Lighting Bezel Color - Please Choose Color
Spare Wheel - 14 in Alloy w/Side Carrier
Spare Wheel - 14 in Alloy w/Under Hull Carrier
Spare Wheel
Spare Wheel - Side Carrier - Mount Only
Spare Wheel - Under Hull Carrier - Mount Only
Transom Step w/Slimline LED
Transom Tie Down - SS Ratchet w/ Retractable Straps
Tread Plates - Soft Grip - Sterling
Tread Plates - Soft Grip - Suede
Turn Signals
Turn Signals (Amber)
Hidden Wheel Chock
Confidence and the power to make the hair on your neck stand straight up every time you turn the key. Discover the massive gains in throttle response, horsepower and towing power made possible by the Monsoon 409 SS features and benefits listed below.
- Coil-near-plug ignition system with 58X crankshaft position encoder, 4X cam sensor, and dual flat response knock sensors for precise control of ignition timing under all operating conditions
- Iridium tip long-life spark plugs with improved “self cleaning” properties which decrease the potential for plug fouling
- Variable valve timing using a hydraulic cam phaser to retard cam timing for low end torque and advance cam timing for high rpm horsepower
- Cast iron deep-skirt cylinder block with six-bolt main bearing caps that limit crankshaft flex and stiffen the engine’s structure
- Serpentine belt
- Top mount starters
- Cast aluminum structural oil pan for additional rigidity
- High-flow aluminum cylinder head design
- Steel camshaft, hydraulic roller lifters, and steel roller rocker arms for reduced friction and excellent durability
- Returnless fuel injection with stainless steel fuel rail
- Inconnel (high temperature) exhaust valves for longterm durability
- Shallow sump oil pan for marine applications
- Floating pin pistons which reduce noise and increase durability
- Heavy-duty timing chain with a new leaf spring dampener to ensure quiet operation and long-term durability
Meet the all-new fuel-sipping Monsoon 450. The inboard marine engine that takes you further on every litre of fuel.
The Monsoon 450 stands apart from all other inboards delivering best in class torque, horsepower and fuel efficiency.
TORQUE ON TAP AND PREMIUM FEATURES
With torque on tap and premium features that enhance the driving and towing experience, the Monsoon 450 is an exceptional choice to deliver the additional torque necessary to quickly plane larger boat models with factory ballast, plus additional loading.
RAPTOR PERFORMANCE MANAGEMENT SYSTEM (RPM) INTELLIGENCE IN MOTION
In efforts to make boating easier for the driver, Indmar has added a suite of monitoring systems to the Monsoon series that enables the high capacity ECM to reduce operator workload, as well as react precisely to driver commands. The Raptor Performance Management System (RPM) comes standard on each Monsoon model and arrives packed with an long list of innovative and intuitive components that constantly monitor conditions and driver input to optimize performance and efficiency of the engine, while adding an extra layer of protection by staying one step ahead. Essentially the RPM turns all of your controls, sensors and systems into one finely tuned machine.
These precise, seamless adjustments bring added confidence and the promise of an immediate thrill - season after season. The Raptor Performance Management System is your trusty wingman, no matter the conditions.
FULL 5-YEAR FACTORY WARRANTY
Indmar's commitment to quality, durability and reliability of the all-new Monsoon Series.
Not only does Indmar’s all-new Monsoon Series offer more power, more torque and better fuel economy, more protection and peace of mind also come standard with a full 5-Year Factory Warranty. The Monsoon Series is an exclusive line-up that defies every challenge, especially the test of time. Welcome to the all-new 5-Year Factory Warranty. Administered directly through Indmar, no third party or insurance involvement.
All the performance benefits of the Monsoon 6.2L 450 High Output engine with the added protection of Indmar’s SaltWater Series, which has been extensively tested and developed to withstand corrosive environments.
Each Indmar SaltWater Series inboard and its associated parts receive an advanced electro-coated dip (E-coat) process that provides complete protection against corrosion. E-coat completely covers both external and internal surfaces, creating a permanent paint to metal bond. And unlike paint and powder coat used by some competitors E-coat will not peel, will not crack and corrosion will not permeate it.
Indmar SaltWater Series cooling systems are completely closed loop systems. That means salt water will never enter the engine system or the exhaust manifolds.
Indmar's cooling systems use only propylene-glycol/water coolant driven through a corrosion resistant engine circulating pump. Coolant tanks are easily accessible for filling and sacrificial anodes are featured for extended life. Indmar confidently backs each SaltWater Series engine with the same three-year limited warranty.
WaterSki Mag
The brand-new Wakesetter 21 VLX is a well-equipped multi-sport boat that will appeal to families shopping for a do-it-all inboard that’s easy to tow and store, and looks amazing on the water. Manufactured in Loudon, Tennessee, this boat specs out at 21-feet long and with a 98-inch beam.
The company gives you two running surface options — the diamond or wake hull. The diamond hull will be the choice for water sports athletes that gravitate more to slalom skiing and the wake specific hull will cater to the wakeboaders in the family.
With either option, you get a long list of standard features that includes the G3.5 tower, Surf Gate, Quad Hard Tank Ballast system, Power Wedge II hydrofoil, and the ever-popular dual-screen digital Command Center that controls everything.
As with all Malibu’s, the Wakesetter VLX is built for high-end performance. Its robust stock engine accelerates smoothly out of the hole, and its tracking and turning capabilities are right on the money. You’ll even be impressed with the boat’s steering performance when challenging docking situations present themselves. It responds instantly and precisely to your direction as captain.
Styling, comfort, performance are all top-notch, and you will quickly realize as we did, that’s there’s a lot to love about the new Wakesetter 21 VLX.
Water Ski Magazine
BOATING
Malibu's Wakesetter 21 VLX is designed for the watersports enthusiast who wants a boat that can do it all.
Surf? Skate? Wakeboard? Even ski? The Malibu Wakesetter 21 VLX is designed for the watersports enthusiast who wants a boat that can do it all.
While the 21 VLX shines in all phases, it’s the wake it produces that sets it apart. All new for 2017, this 21-foot crossover produces a wave with the quality to compete with the best boats out there. It comes standard with the Integrated Surf Platform, including the wake-optimized hull design, Quad Hard Tank Ballast system, Power Wedge II hydrofoil and the revolutionary Surf Gate. The all-new G3.5 tower comes standard, too. Throw in the trailer and the 21 VLX becomes an absolute steal for the surfing set.
Our staff’s wakesurfing experts were amazed that a boat this size can throw such a long and powerful wave, but, like Malibu says, the truth is on the water. We were really impressed with the length of the pocket on the 21 VLX. We were able to drop back so unbelievably far and the wave still had a ton of push, an uncommon trait for a smaller-size boat. But because of the Surf Gate, combined with the Power Wedge II, all the boats in the 2017 Malibu lineup throw clean, consistent and massive waves. And with Surf Band, which you wear on your wrist while surfing behind the boat, you can control and tweak the wave to your liking while out on the water. The driver can easily command all settings from the 12-inch in-dash touchscreen display, as well as the smaller 7-inch display at the helm.
While the 21 VLX shines at 11 mph surf speeds with full ballast, it’s no slouch when it’s time to empty the tanks and climb onto plane. With no ballast in the hull, we were able to push it onto plane in 4.3 seconds en route to an almost 41 mph top speed, very speedy for an inboard-powered tow boat. The open-bow cockpit and wraparound benches in the main cockpit can accommodate up to 13 people, so the whole crew can get in on the action, be it surfing, skating or cruising around the local lake. Sometimes you really can do it all.
High Points
* 2,200-pound-capacity ballast system fills quickly.
* New G3.5 tower stores your quiver and folds down for garaging.
* Wet Sounds stereo system with six speakers carries tunes throughout the boat and out to the rider.
* In-dash 12-inch touchscreen command center gives driver easy command.
Boatingmag.com
